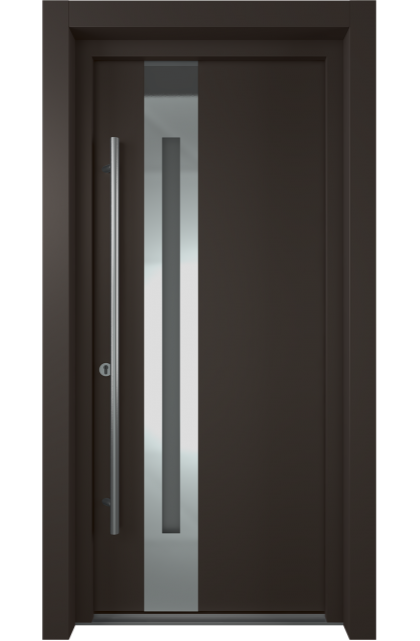

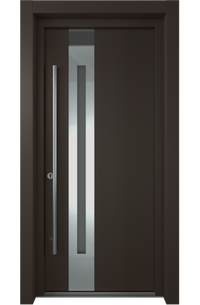

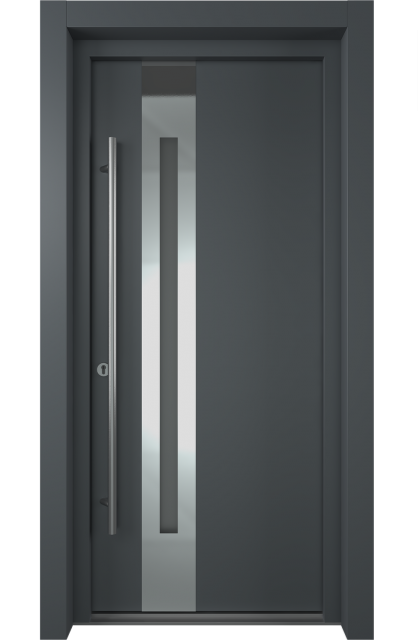

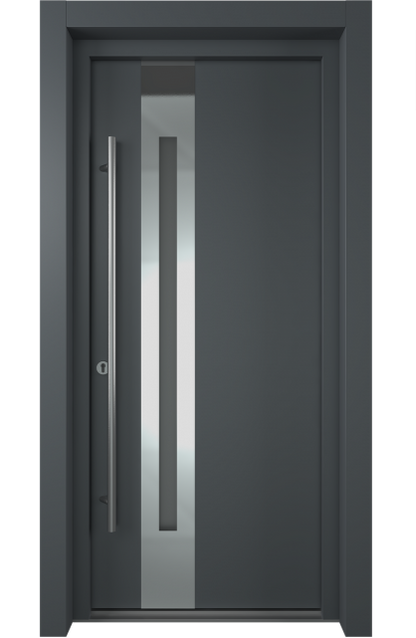

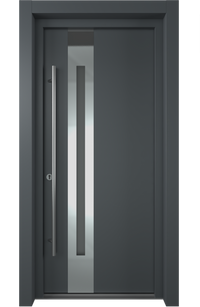

MODERN FRONT STEEL DOOR ZEPHYR

Name: MODERN FRONT STEEL DOOR ZEPHYR
Brand: Designer Doors & Building Supply
SKU: SKU_1746217818433_81
Price: 2799.0 USD
Availability: InStock

4 Reviews

$2,799.00

Sold out

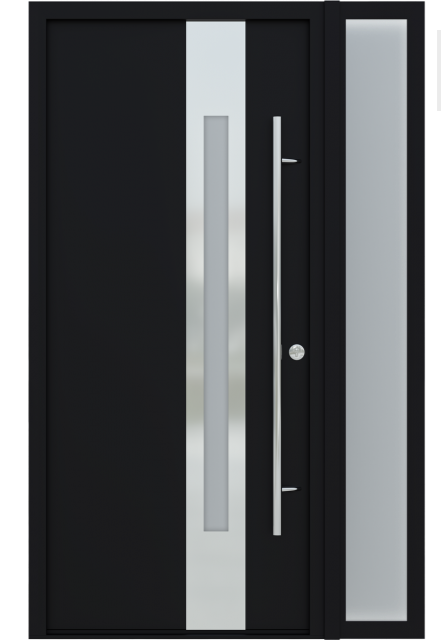

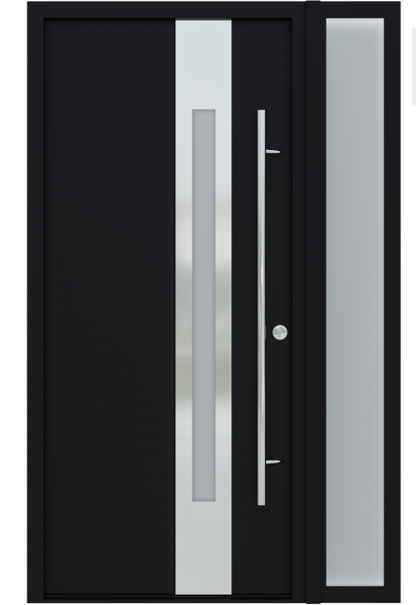

Color - BLACK/WHITE 49 1/4" X 81 11/16" LHI + SIDELITE RIGHT

Product variants

Quantity

GET A QUOTE

add_shopping_cart

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

MODERN FRONT STEEL DOOR ZEPHYR

$2,799.00

SAVE Sold out

Application
Type	Exterior
Swing direction	Right hand inswing or left hand inswing
Exterior
Sound insulation	37 dB
Resistance to heat transmission	Corresponds to class T2 (0.65) m²·C/W
Slab
Slab size	79 7/8" × 34 11/16"
Slab Thickness	2 1/16"
Steel Thickness	3/64"
Material	Zinc-galvanized steel
Thermal insulation	2 thermal breaks, high-density polystyrene foam, glued laminated bar
Thermal break technology	A break in the steel box eliminates the cold bridge
Sealing	Double loop seal
Frame
Frame height	81 11/16"
Frame width	37 7/16"
Frame material	Zinc-galvanized steel
Sealing	Schlegel Polyurethane Q-lon Seal
Door sill	Stainless steel threshold reinforced with zinc-galvanised steel frame
Casing
Material	Zinc-galvanized steel
Exterior Finishing
Color	Anthracite (RAL7016) / Brown (RAL8019) / Black (RAL9005)
Type	Extra durable painting with reliable protection from UV rays
Glass Insert
Glass	Tempered, safety, translucent frosted glass with silk-screen printing with ceramic inks
Design	Triple glazed sealed unit with two chambers
Overall thickness	2" (50 mm)
Glass quality	Tempered glass on both door sides
Interior Finishing

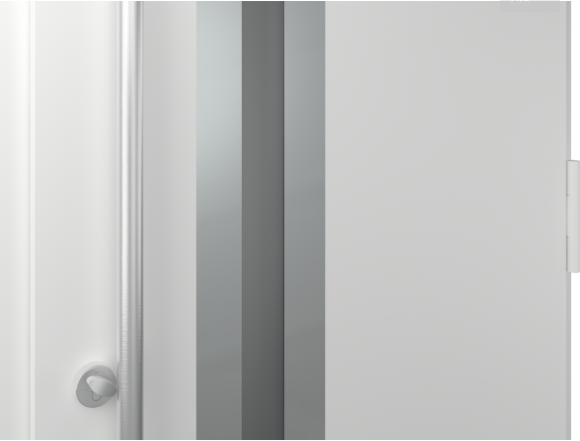

Color	White (RAL 9003)
Hardware
OPTIONAL	Door closer
Exterior handle	Railing type
Interior handle	Railing type
Lock/cover, plates/cylinder	Apecs T-52-NIS
Hinges type	Hinges with 3D-adjustment by Dr.Hahn Germany
Sidelight
Glass type	Tempered, safety, translucent frosted glass with silk-screen printing
Glass construction	Triple glazed sealed unit with two chambers
Width	11 13/16"
Height	81 11/16"
Thickness with frame	2 43/64" (68 mm)
Glass thickness	1 17/64" (32 mm)
Frame material	Glued laminated timber with thermal break
Transom
Glass type	Tempered, safety, translucent frosted glass with silk-screen printing
Glass construction	Triple glazed sealed unit with two chambers
Width	14 1/64"
Length	Depending on the number of sidelights: 37 7/16" (no sidelights), 49 1/4" (one), 61 1/16" (two)
Thickness with frame	2 43/64" (68 mm)
Glass thickness	1 17/64" (32 mm)
Frame material	Glued laminated timber with thermal break
Other
Warranty	24 months
Packaging	Pre-hung unit ready for installation. Factory packing on pallet

check_circle Don't Forget To Buy Frame & Casings Kit

Amazing craftsmanship and top-notch service! My new front door looks stunning. Highly recommend!

Michael R.
Got a custom-designed door, and it’s exactly what I wanted! Great quality and seamless installation.

Samantha L.
Great prices, fast delivery, and beautiful doors. Totally transformed my home. Will buy again!

Daniel M.

check_box

Description

Zephyr is an energy-saving weatherproof door with а reinforced door frame for houses:

The slab material is zinc-galvanized steel.

The frame material is galvanized steel.

Translucent frosted glass is a triple-sealed unit with two chambers: it is tempered on both sides and has silkscreen printing using ceramic inks.

Two thermal breaks, high-density polystyrene foam, and a glued laminated bar provide thermal insulation.

The stainless steel threshold, reinforced by a galvanized steel frame.

Polyurethane Schlegel Q-lon seal.

Soundproofing: 37 dB.

Cold protection: a galvanized steel door frame with two thermal breaks gives the door high thermal insulation properties and retains your home heat, even at extremely low temperatures.

Finishing
Exterior finishing type: Extra durable painting with reliable protection from UV rays.

Exterior finishing colors:

Anthracite (RAL 7016).

Black (RAL 9005).

Brown (RAL 8019).

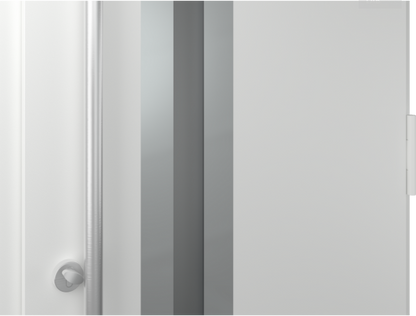

Interior finishing color: white (RAL 9003).

Hardware
The set of hardware includes:

Exterior and interior railing type handle.

3D-adjustable hinges (Germany).

check_box

Technical Information

Application
Type	Exterior
Swing direction	Right hand inswing or left hand inswing
Exterior
Sound insulation	37 dB
Resistance to heat transmission	Corresponds to class T2 (0.65) m²·C/W
Slab
Slab size	79 7/8" × 34 11/16"
Slab Thickness	2 1/16"
Steel Thickness	3/64"
Material	Zinc-galvanized steel
Thermal insulation	2 thermal breaks, high-density polystyrene foam, glued laminated bar
Thermal break technology	A break in the steel box eliminates the cold bridge
Sealing	Double loop seal
Frame
Frame height	81 11/16"
Frame width	37 7/16"
Frame material	Zinc-galvanized steel
Sealing	Schlegel Polyurethane Q-lon Seal
Door sill	Stainless steel threshold reinforced with zinc-galvanised steel frame
Casing
Material	Zinc-galvanized steel
Exterior Finishing
Color	Anthracite (RAL7016) / Brown (RAL8019) / Black (RAL9005)
Type	Extra durable painting with reliable protection from UV rays
Glass Insert
Glass	Tempered, safety, translucent frosted glass with silk-screen printing with ceramic inks
Design	Triple glazed sealed unit with two chambers
Overall thickness	2" (50 mm)
Glass quality	Tempered glass on both door sides
Interior Finishing
Color	White (RAL 9003)
Hardware
OPTIONAL	Door closer
Exterior handle	Railing type
Interior handle	Railing type
Lock/cover, plates/cylinder	Apecs T-52-NIS
Hinges type	Hinges with 3D-adjustment by Dr.Hahn Germany
Sidelight
Glass type	Tempered, safety, translucent frosted glass with silk-screen printing
Glass construction	Triple glazed sealed unit with two chambers
Width	11 13/16"
Height	81 11/16"
Thickness with frame	2 43/64" (68 mm)
Glass thickness	1 17/64" (32 mm)
Frame material	Glued laminated timber with thermal break
Transom
Glass type	Tempered, safety, translucent frosted glass with silk-screen printing
Glass construction	Triple glazed sealed unit with two chambers
Width	14 1/64"
Length	Depending on the number of sidelights: 37 7/16" (no sidelights), 49 1/4" (one), 61 1/16" (two)
Thickness with frame	2 43/64" (68 mm)
Glass thickness	1 17/64" (32 mm)
Frame material	Glued laminated timber with thermal break
Other
Warranty	24 months
Packaging	Pre-hung unit ready for installation. Factory packing on pallet
